‧ Support roller shutter calibration via configuration setting, or pairing button, or external button
‧ Reset to default value through configuration setting or pressing pairing button
‧ Kid-immune protection to keep away kids from playing with shutter controller switch
‧ Access to review power consumption
‧ Flexible timer to set on and off as desired
‧ Alert push notification to remind garage door being opened
‧ Overcurrent protection power cut and alert reminding
‧ Support momentary switch, toggle switch, and toggle switch with memory
‧ Support firmware OTA

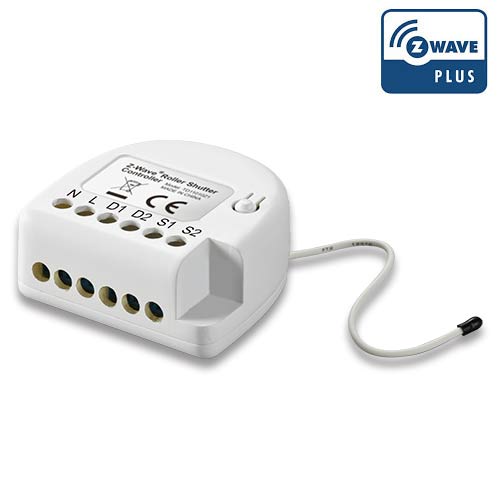

Z-Wave® Roller Shutter Controller is an ideal remote controller which can control the motors of rollers, shades, blinds, veneti an blinds and similar sunshade.
110 -230 VAC ±10%
50 / 60 Hz
WIRELESS TYPE
Z-Wave Plus Smart Start
FREQUENCY
868.42 MHz(EU) / 908.42 MHz(US)
LED
Red/Green * 1
RATED LOAD CURRENT OF AC OUTPUT (resistive load)
Motor under 170W
DATE RATE
9.6kbps / 40kbps / 100kbps
OPERATION RANGE
up to 100m outdoor
up to 30m indoor
POWER MEASUREMENT ACCURACY
P = 0-200 W, +/- 2 W; P > 200 W, +/-3%
OPERATION TEMPERATURE
-0°C~40°C
DIMENSION
45.5 x 45 x 22 mm
REGULATORY APPROVALS
CE / FCC / Z-Wave® Plus / UL
ELECTRICITY CONSUMPTION
< 0.5W
SWITCHING
Relay x 2
