‧ State "on" or "off" of switch can be viewed through app
‧ Conveniently and quickly switch power supply
‧ Assure household electrical safety
‧ Can be controlled by Z-Wave Gateway

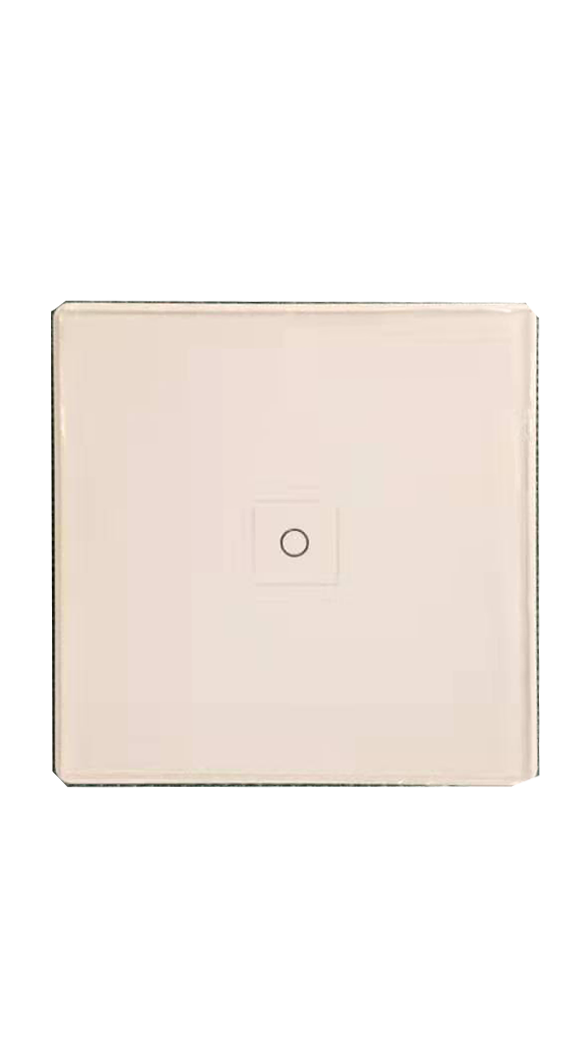

Light Switch is an intelligent device that can be remotely controlled through Z-Wave® network and radio waves. In the Z-Wave® network communications, light switch can be connected to any Z-Wave® gateway. When using radio waves, light switch can be used in conjunction with Z-Wave® gateway. The frequency of radio waves used by gateway and switch is like this: different countries or areas, the radio frequency is different. Each light switch has a unique ID code. When we add or remove the switch from the alarm host, just place light switch in the Z-Wave® network range of gateway. Then we can easily find the switch through the device ID code.
AC 100~240V
Power Consumption
1.2W
Standby Power Consumption
< 0.007W
Operating mode
Touch-Sensitive
Switch output
Can connect one/two output devices and supports 16A max
Working Temperature
0~40°C
Wireless protocol
Z-Wave® Plus
Wireless frequency
908.4MHz(US), 868.4MHz(EU)
Wireless range
Outdoor 30 meters, indoor 20 meters
Dimensions(DxWxH)
EU:86 x 86 x 34 mm
US:120 x 74 x 37 mm
