1. It’s recommended to install the sensor on the ceiling or upper portion of wall at least 40cm (2feet) from corners and other objects. Particular attention should be paid to any adjacent objects or devices which can impede smoke’s accessto the sensor. It’s recommended to install Smoke Sensor in all rooms prone to fire, and in between suchrooms as well.

2.Add thedeviceintotheZ-Wavenetwork.Notetheaddingprocessmaybeperformed ONLYindirectrange of the main controller.

3. Install the sensor’s cover indesired location.

4. Screw the Smoke Sensor into the cover.

5. If the sensor is already added into the Z-Wave network, wake it up by clicking the ADD Button. Otherwise, add the devices described as below.

6. Test Smoke Sensor’s operation by performing a self-testw hen press & hold the Test Button. Operation Z-Wave Internet:
Including or Pairing the LZ801 to a Z-Wave Controller:

1) Install the battery.Visual indicator show status (red - device ready for adding, green - device added), please remove devicefrom Z-Wave networkfirstly.

2) Make sure the deviceis located within direct range of the Z-Wave controller.

3) Follow the instructions of certified controller to include a device from different manufactures into the Z-Wave network.

4) Once the controller is ready to include your device, triple clicktheADD Button, located on Smoke Sensor.

5) Smoke Sensor will be detected and added in the Z-Wave network.

Excluding or Un-Pairing the LZ801 from a Z-Wave Controller:

1) Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.

2) Once the controller is ready to Exclude your device,triple click Tamper switch to exclude it from Z-Wave network.

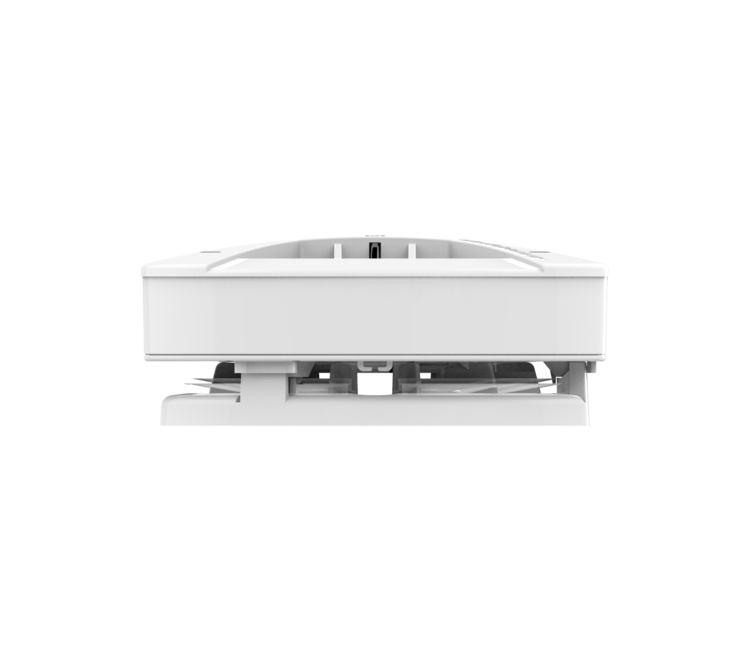

The LZ801 is powered by longlife CR123A 3V Lithium batteries. The battery operated build makes for an easy, wireless installation. You can ensure that your residence is completely prepared in the unfortunate event of kitchen fires, electrical fires, and other highly dangerous fires.
