‧ Easy installation
‧ Associate with other devices through gateway
‧ Compatible with any Z-Wave network

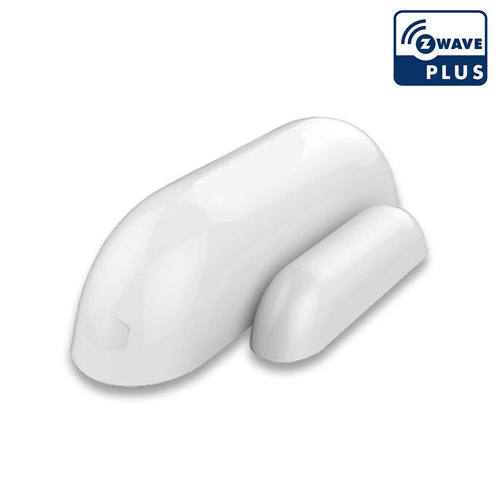

Door / window sensor can monitor whether door, window, cabinet, is open or closed. The operation followed Z-wave ® standard, can be compatible with Good Way Gateway / Dongle system. Simple to install and easy to connect. With scene setting, it puts your home automatically on guide.
CR2 Battery x1
FREQUENCY
868.42 (EU) / 908.42 (US) / 922.5 (JP) MHz
DETECT TYPE
Magnetic reed switch
LED INDICATOR
Red
PROTOCOL
Z-Wave® Plus
DATE RATE
9.6kbps / 40kbps / 100kbps
OPERATION RANGE
100 feet (About 30M)
APPLICATION
Indoor use
OPERATION TEMPERATURE
0°C~40°C
DIMENSION
Detector: 71 x 20 x 22 mm
Magnet: 40 x 11 x 11 mm
REGULATORY APPROVALS
CE / FCC / Z-Wave® Plus
